JVM Startup

https://www.youtube.com/watch?v=ED1oc7gn5uY

🌱 Big Picture

Starting a simple Java program (like HelloWorld) involves much more than just executing main(). The JVM must first build its entire runtime “universe”: allocate memory, choose a GC, load core classes, and link them — all before your code runs.

---

1️⃣ Starting the JVM

• Command: Running java MyApp kicks off JVM startup.
• Entry point: Internally calls JNI_CreateJavaVM (part of the JNI interface).
• Tasks at this stage:
  • Parse and validate VM arguments
  • Validate the main class
  • Check system resources (processors, memory, OS utilities)

---

2️⃣ Environment Preparation

• System resource checks:
  • Number of processors → influences GC choice
  • Available memory
• GC selection:
  • Default = G1GC
  • If single CPU or < 1.7 GB memory → fallback to Serial GC
• Performance data (HSPerfData):
  • HotSpot-specific
  • Used by tools like jconsole, jvisualvm
  • Stored in temp directory
• GC roots formed here:
  • The JVM internals (class loaders, runtime tables, monitors).
  • The main thread object (java.lang.Thread) is created in the heap and registered → pinned as a root.

---

3️⃣ Memory Regions Setup

• Heap initialisation: Divided into Young (Eden + Survivor spaces) and Old Gen.
• Metaspace:
  • Stores class metadata (replaced PermGen since Java 8).
  • Allocated from native memory, but still managed by GC.
  • Equivalent to “Method Area” in JVM spec.

---

4️⃣ Class Loading (Spec §5.3)

• Performed by the bootstrap class loader (native machine code).
• Loads essential classes first:
  • java.lang.Object (root of all classes)
  • java.lang.String, java.lang.Class
• Classes are loaded in tree order (dependencies first).
• At load time, classes are in a “loaded but not ready” state.
• GC roots formed here:
  • Static field references of core classes.
  • These remain roots for as long as the class is loaded.
  • Any static variables in your class.

Class Loaders

There are 2 different types of class loaders, the Bootstrap Class Loader and the User-Defined Class Loader

|Feature|Bootstrap Class Loader|User-Defined Class Loader| |---|---|---| |Implemented in|Native code (inside JVM)|Java (extends ClassLoader)| |Loads|Core JDK classes (java.lang.*, java.util.*)|Custom or application-specific classes| |Source|JDK modules / JAVA_HOME/lib|Anywhere: JAR, network, DB, encrypted file| |When used|JVM startup, always first|On-demand by application/framework| |ClassLoader instance|Represented as null in getClassLoader()|Non-null, explicitly created|

---

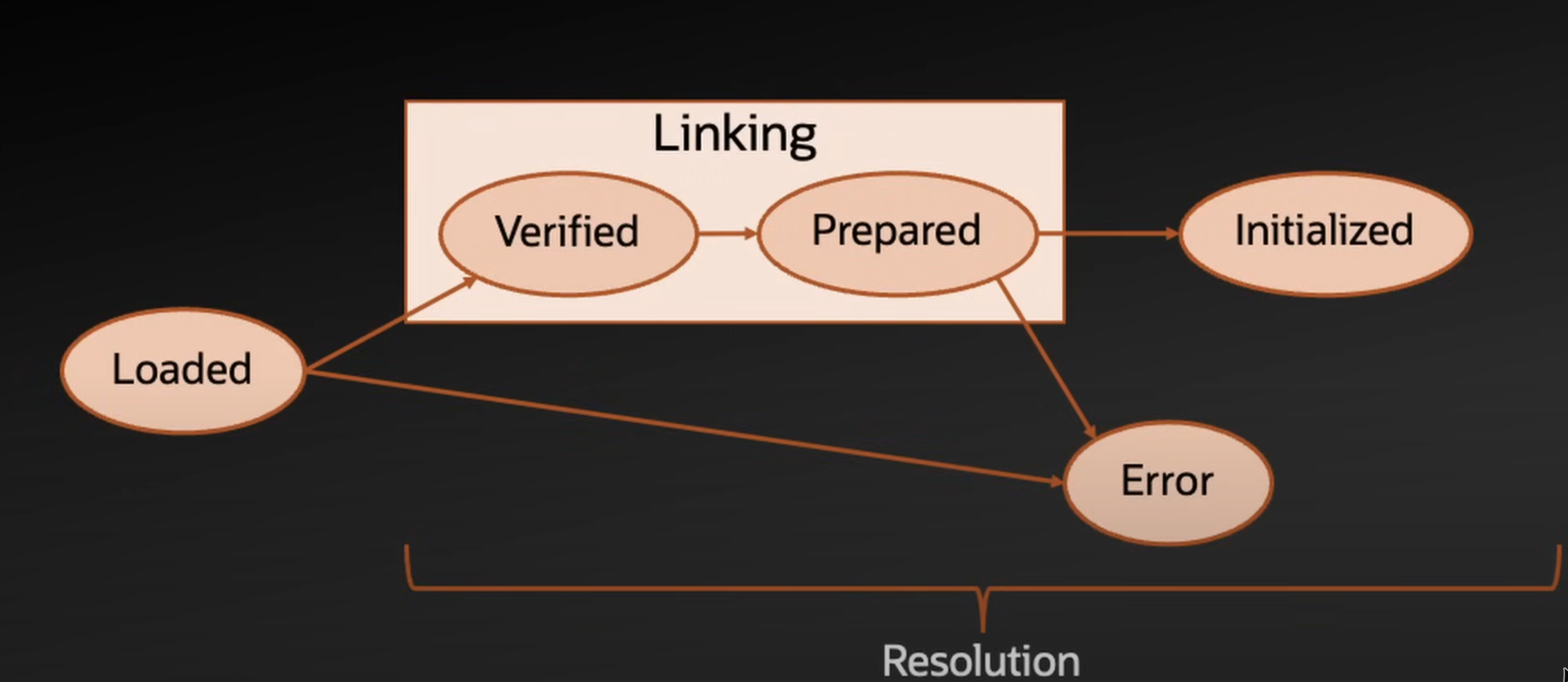

5️⃣ Linking (Spec §5.4)

Three sub-steps:

1. Verification
   • Ensures the class is structurally correct.
   • May trigger loading of additional classes.

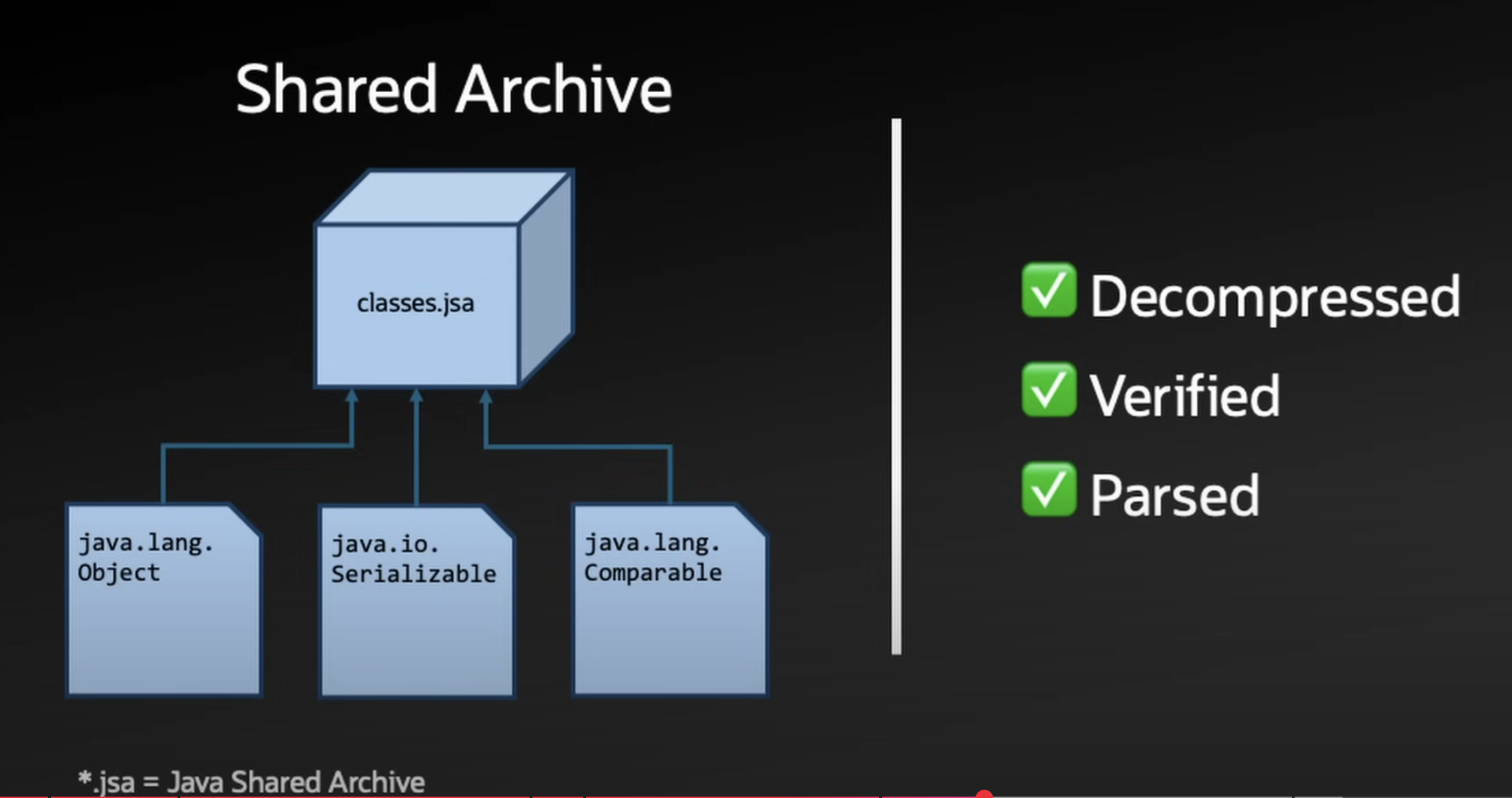

   • JDK classes often skip this step (verified ahead of time via Class Data Sharing).
2. Preparation
   • Allocate memory for static fields.
   • Initialise them to default values (0, null, etc.).
3. Resolution
   • Resolve symbolic references in the constant pool → actual references to methods/fields/classes.
   • Can happen eagerly or lazily (on first use).

---

6️⃣ Initialization (Spec §5.5)

• Executes:
  • Static initializers (static { ... })
  • Assignments to static fields
• Done via a special synthetic method:
  • <clinit>()V → automatically generated by the compiler.
• Distinct from instance initialization (<init> constructor).

---

7️⃣ User Code Execution

• After ~450 core classes are loaded, linked, and initialized (~62 ms in tests), the JVM finally calls public static void main(String[] args).
• At this point, the HelloWorld program actually begins.

---

🔮 Future of JVM Startup

• Project Leyden: Optimise startup and footprint.
• AOT (Ahead-of-Time) class loading/linking replaces old CDS (Class Data Sharing) terminology.
• JEP 483: AOT class loading/linking coming in JDK 24.

---

🧠 Key Takeaways

• JVM startup is much more complex than just calling main().
• Steps include:
  • Argument validation
  • GC selection
  • Metaspace setup
  • Class loading, linking, and initialization
• Tools like CDS/AOT are being introduced to speed up this process.

---

 ┌───────────────────────────────────────────────────────────────┐
 │                        JVM Startup Flow                       │
 └───────────────────────────────────────────────────────────────┘

 java MyApp
      │
      ▼
 JNI_CreateJavaVM (native entry point)
      │
      ▼
 Parse + validate VM args & main class
      │
      ▼
 System resource checks (CPU, memory, OS utils)
      │
      ├── If ≥ 2 CPUs & ≥ 1.7 GB RAM → G1GC
      └── Else → Serial GC
      │
      ▼
 Setup environment (HSPerfData, monitoring hooks)
      │
      ▼
 Initialize memory regions
   ├─ Heap (Young Gen: Eden + Survivor, Old Gen)
   └─ Metaspace (class metadata, native memory)
      │
      ▼
 Class Loading (bootstrap loader)
   ├─ java.lang.Object
   ├─ java.lang.String
   └─ java.lang.Class … (and dependencies)
      │
      ▼
 Linking
   ├─ Verification (structural checks)
   ├─ Preparation (static fields → default values)
   └─ Resolution (constant pool → real refs)
      │
      ▼
 Initialization
   ├─ Run <clinit>() (static initializers & fields)
   └─ Mark class as initialized
      │
      ▼
 User code starts:
   → main(String[] args)
